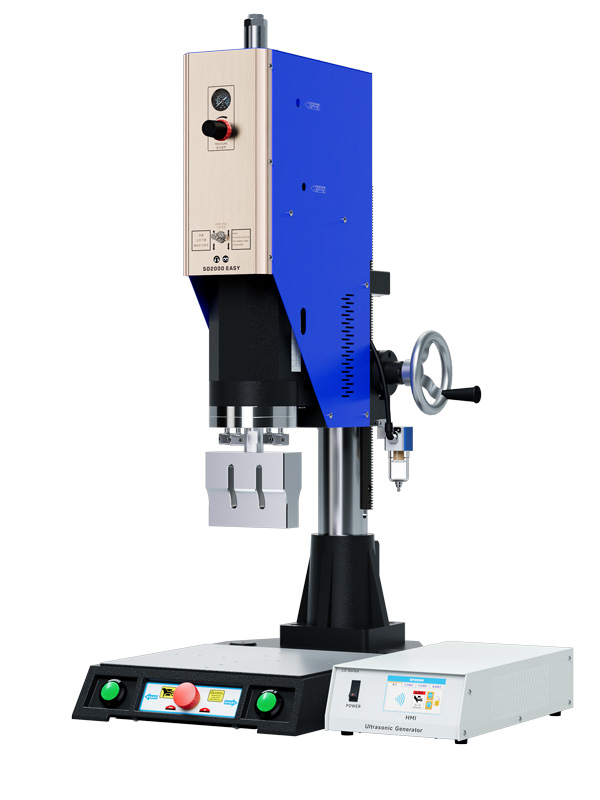

机型 | SO2000 Easy 声峰超声波焊接机 数字化 圆立柱 | |||
频率 | 20kHz | 15kHz | ||
功率 | 2000W | 2600W | 2600W | 3200W |
输入电压 | AC220V | AC220V | AC220V | AC220V |
焊头行程 | 75mm | 75mm | 75mm | 75mm |
机身行程 | 75-520mm | 75-520mm | 30-475mm | 30-475mm |
输出时间 | 0.01-9.99s | 0.01-9.99s | 0.01-9.99s | 0.01-9.99s |
输入气压 | >1,≤7bar | >1, ≤7bar | >1, ≤7bar | >1, ≤7bar |
焊接面积 | Φ170mm | Φ220mm | Φ220mm | Φ300mm |

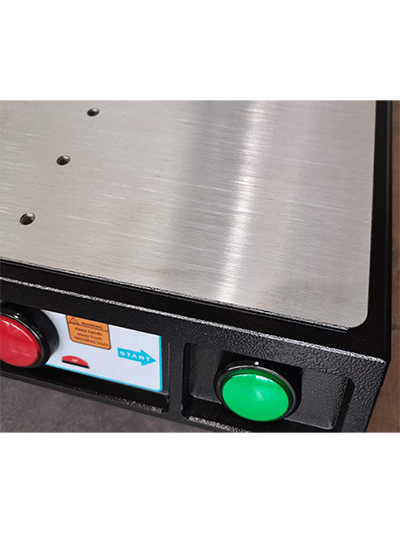

操作开关 | 双手启动,前部有紧急制动,也可附加外部开关 | |||
压机 | 642x400x1365 | 642 x400x1365 | 642 x400x1365 | 642 x400x1365 |
电箱尺寸 | 405x248x120 | 405x248x120 | 405x248x120 | 405x248x120 |
